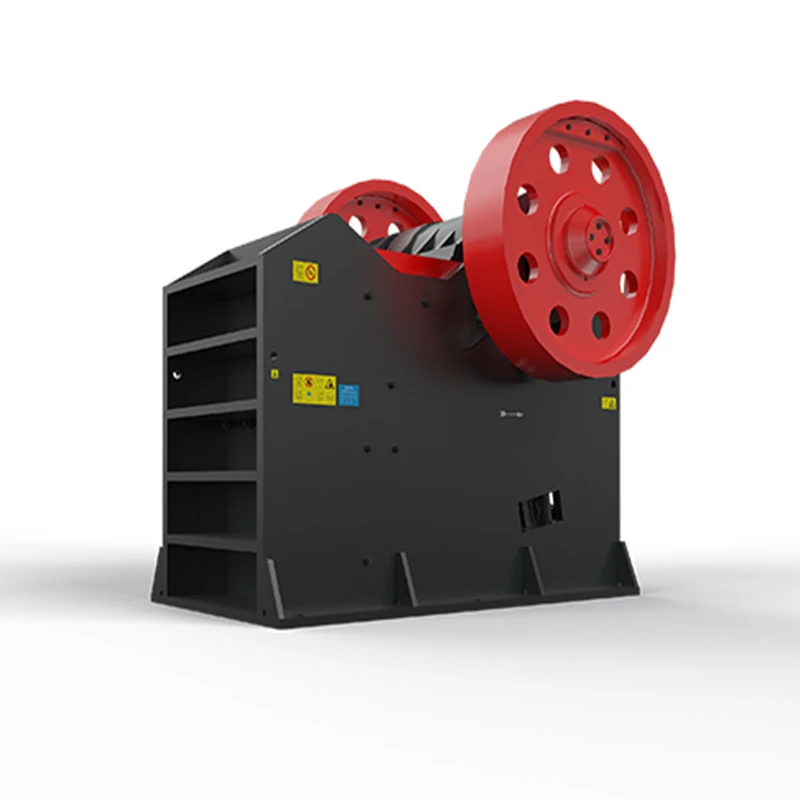

PE Series Lub puab tsaig Crusher
Pub qhib loj (hli): 150 × 250 / 200 × 300 / 200 × 350 / 250 × 400
Max.Feeding loj (mm): 125/180/180/210
|
Qauv |
Pub qhib loj (mm) |
Max. Pub mis loj (mm) |
Kev hloov pauv ntawm qhov chaw nres nkoj tawm (mm) |
Peev xwm (t / h) |
Kev sib hloov ceev ntawm eccentric ncej (r / min) |
Lub zog (kw) |
Qhov ntev(L×W×H) (mm) |
|
PE 150 × 250 |
150×250 |
125 |
10-40 |
1-3 |
268 |
4P 5.5 |
760×700×860 |
|
PE 200 × 300 |
200×300 |
180 |
15-50 |
2-6 |
260 |
4P 7.5 |
915×780×990 |
|
PE 200 × 350 |
200×350 |
180 |
18-60 |
3-10 |
276 |
4P 11 |
1000×914×1112 |
|
PE 250 × 400 |
250×400 |
210 |
20-70 |
5-21 |
300 |
6P 15 |
1100×1032×1285 |
|
PE 400 × 600 |
400×600 |
340 |
40-100 |
16-64 |
270 |
6P 30 |
1623×1736×1615 |
|
PE 500 × 750 |
500×750 |
425 |
50-100 |
40-110 |
268 |
6P 55 |
1920×1850×1920 |
|
PE 600 × 750 |
600×750 |
500 |
150-200 |
80-240 |
268 |
6P 55 |
2020×1850×1920 |
|
PE 600 × 900 |
600×900 |
500 |
65-160 |
50-160 |
254 |
6P 55 |
2530×1900×2340 |
|
PE 750 × 1060 |
750×1060 |
630 |
80-180 |
110-320 |
245 |
8P 110 |
2680×2380×2785 |
|
PE 900 × 1200 |
900×1200 |
750 |
100-200 |
220-380 |
208 |
8P 110 |
3470×2876×3330 |
|
PE 1200 × 1500 |
1200×1500 |
1020 |
150-350 |
400-1000 |
180 |
8P 160-245 |
4850×3220×3680 |
|
PE 1500 × 1800 |
1500×1800 |
1200 |
220-350 |
500-1200 |
180 |
8P 280-380 |
5160×3660×4248 |
|
PEX 150 × 750 |
150×750 |
120 |
18-48 |
8-25 |
320 |
4P 15 |
1170×1575×1030 |
|
PEX 250 × 750 |
250×750 |
210 |
25-60 |
13-35 |
320 |
6P 22 |
1550×1730×1470 |
|
PEX 250 × 1000 |
250×1000 |
210 |
25-60 |
16-52 |
330 |
6P 30 |
1580×2006×1390 |
|
PEX 250 × 1200 |
250×1200 |
210 |
25-60 |
20-61 |
330 |
6P 37 |
1780×2214×1430 |
|
PEX 300 × 1300 |
300×1300 |
250 |
20-90 |
16-105 |
300 |
6P 55 |
2210×2320×1723 |
Lus Cim: Kev Ua Haujlwm Muaj Peev Xwm tuaj yeem sib txawv nrog cov khoom sib txawv thiab qhov ntau thiab tsawg.
PRODUCTION INTRODUCTION
Lub puab tsaig crusher muaj ntau yam zoo, xws li loj crushing piv, sib npaug cov khoom granularity, yooj yim qauv, txhim khu kev qha ua hauj lwm mob, kho yooj yim thiab kev lag luam kev lag luam. Lawv tau siv dav hauv kev ua haujlwm ntawm mine, smelting, cov khoom siv hauv tsev, txoj kev, kev tsheb ciav hlau, kev siv dej, kev lag luam tshuaj, thiab lwm yam. Lub zog compression ntawm cov ntaub ntawv yuav tsum crushed yog tsawg dua 320 MPA.
LUB TSEV KAWM NTAWV THIAB KEV PAB CUAM
Cov qauv kev ua haujlwm tshwj xeeb raug nqi qis
High quality steel phaj invoids qhov tsis xws luag ntawm cov hlau casted ua rau tag nrho cov ncej ruaj khov, txo kev co zoo, cov cav tov ua hauj lwm ntau stably.
Yooj Yim Ua Haujlwm Siab Degree Ntawm Automation
Tshem tawm qhov hluav taws xob khiav ceev kho tau yooj yim thiab txhim khu kev qha, kev saib xyuas yooj yim.
Loj crushing piv thiab uniform particle loj
Sib sib zog nqus crushing chamber thiab tsis muaj qhov chaw tuag, nce lub peev xwm pub noj thiab muaj peev xwm nrog loj crushing piv thiab txawm particle loj.
Cov neeg siv khoom

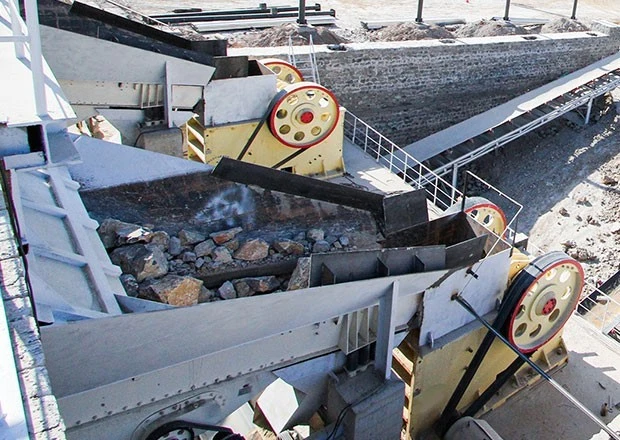

Cov xwm txheej ntawm thaj chaw tiag tiag txheeb xyuas qhov zoo ntawm cov khoom siv thiab tau txais kev qhuas thiab kev yuav khoom rov qab los ntawm cov neeg siv khoom.
